Range of products

In one- and three-phase design as auto-, isolation-, "Step up"- or "Step down"- as well as converter-transformer or regulating transformer

Rated power:

approx. 10 kVA - 1250 kVA (up to 400 kVA at 16Hz)

Rated voltage:

up to highest voltage Um= 12 kV (50 kVA up to 1250 kVA)

Rated frequency:

16Hz, 50 Hz, 60 Hz, 200 Hz

Protection class:

IP00 up to IP54 (IP54 up to 250 kVA)

Insulation class:

E or F

250 kVA Dry-type transformer
degree of protection IP23

In one- and three-phase design as converter-transformer, for 6-, 12-, 18- or 24- pulse operation,
as regulating-transformer for regulation under load or under no-load-condition,
as "Step up"- or "Step down"- transformer for motor-starter-converters,
reduced-voltage motor starters for the startup of high-voltage-motors (up to 20 MW),
as power- and machine-transformers,
as well as special- and test-transformers on demand.

Rated power:

approx. 1000 kVA - 16000 kVA (up to 1600 kVA at 16Hz)

Rated voltage:

up to highest voltage Um= 36 kV

Rated frequency:

16Hz, 50 Hz, 60 Hz

Cooling method:

ONAN, ONAF, OFWF, OFAF

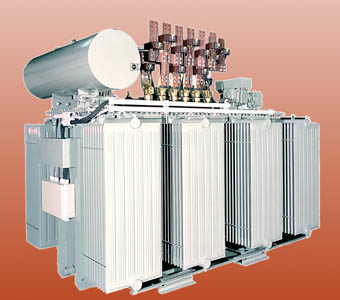

oil-cooled regulating-transformer 2500 kVA
cooling method ONAN
